Force Plates

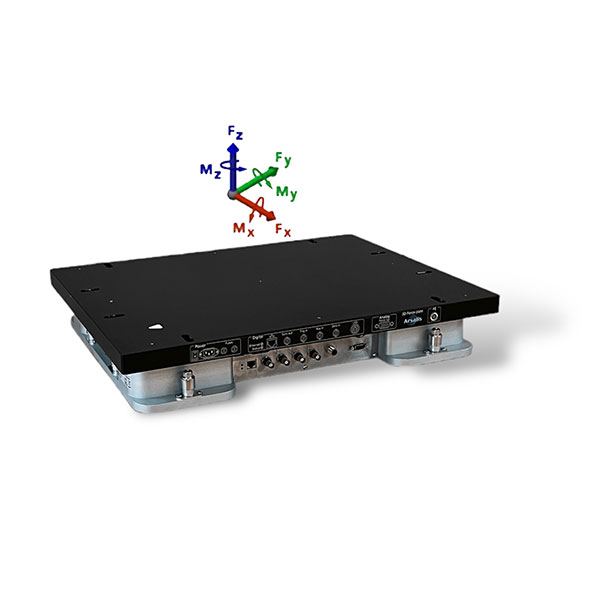

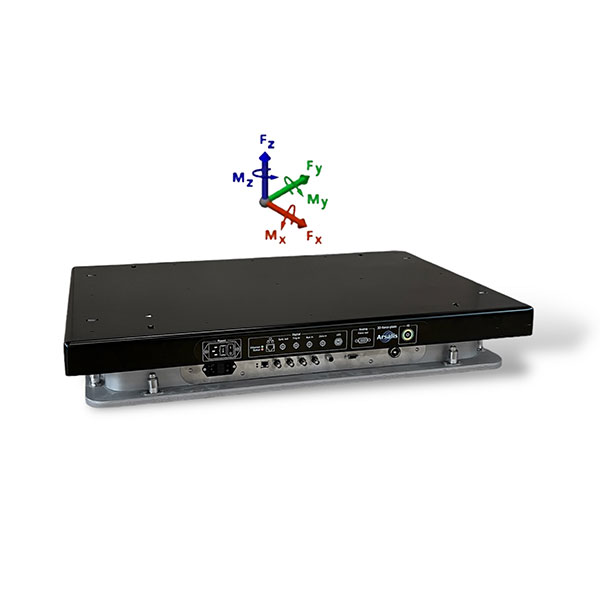

The 3D-Force plate demonstrates outstanding performance and high accuracy with its four strain gauge sensors measuring the vertical, fore-aft and lateral ground reaction forces. Up to 20 force plates can be connected simultaneously and synchronously on a digital interface: optimal signal quality, versatility and very simple integration to set up an instrumented floor.

Discover our productsSee the benefits

Application

    • NBiomechanics
    • NResearch
    • NPostural and movement analysis
    • NJump analysis

    Functionalities

    • NData recording & analysis (e.g. for research facilities)
    • NPatient evaluation (e.g. for clinical research facilities)
    • NOnline feedback to user (e.g. for training facilities)
    • NCustom lab setup

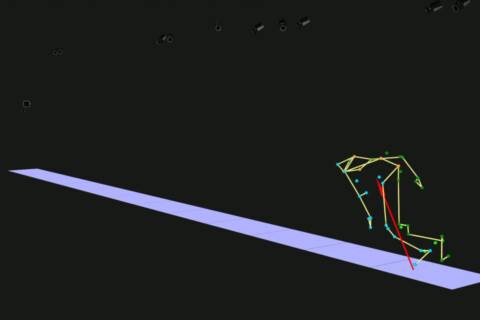

    • NDigital data streaming to Qualisys MoCap systems

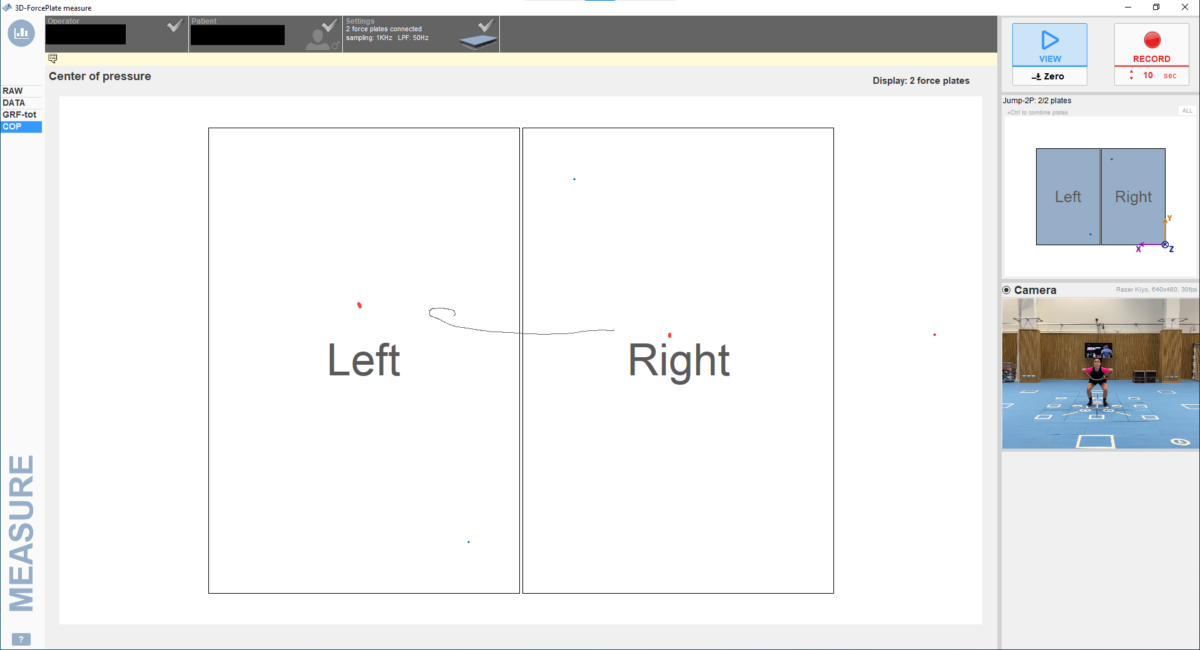

    • NReal-time force and CoP feedback

    System performance features

    • NExtremely wide measuring range
    • NExcellent measuring accuracy
    • NCustom flooring material
    • NFloor integration options
    • NBuilt-in amplifier with acquisition system
    • NLAN connection
    • NDigital trigger inputs/output for synchronisation with EMG and MoCap system
    • NMaster/slave synchronisation
    • NControl, acquisition & analysis software included
    • NFull access to raw data and processed data
    • NCost-effective

    Biomechanical parameters

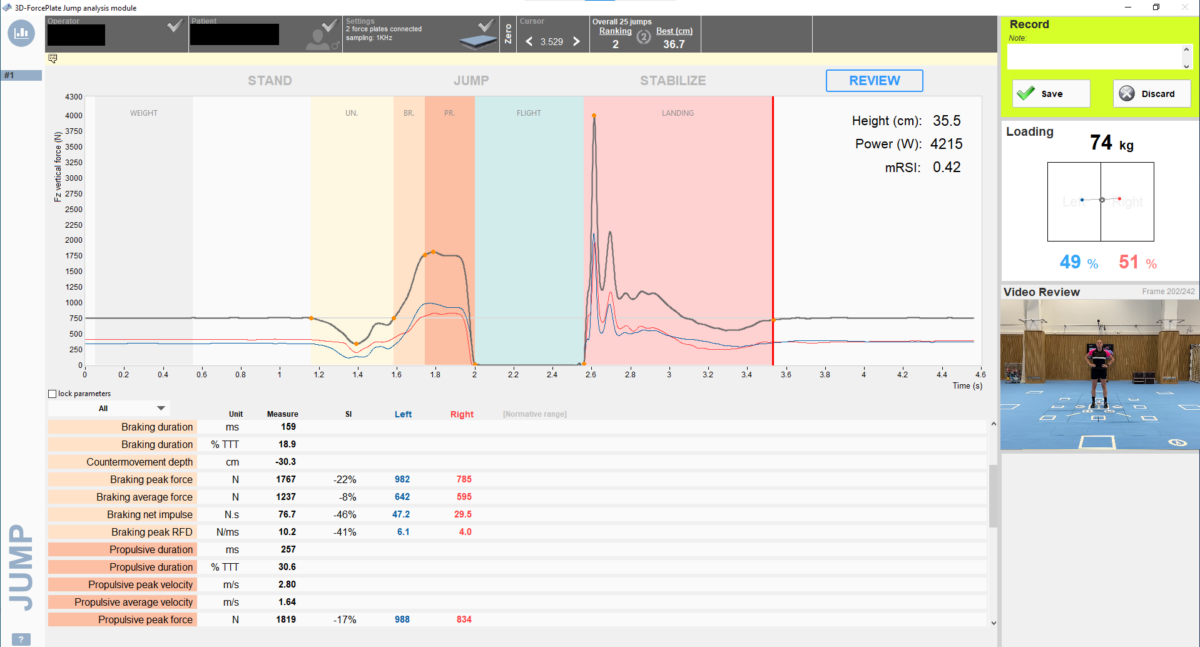

    • NJump module
    • ELeft-right dynamic loading display
    • Ejump phases automatic detection
    • Epeak forces, rates, impulses, powers, ratios, symetry index...

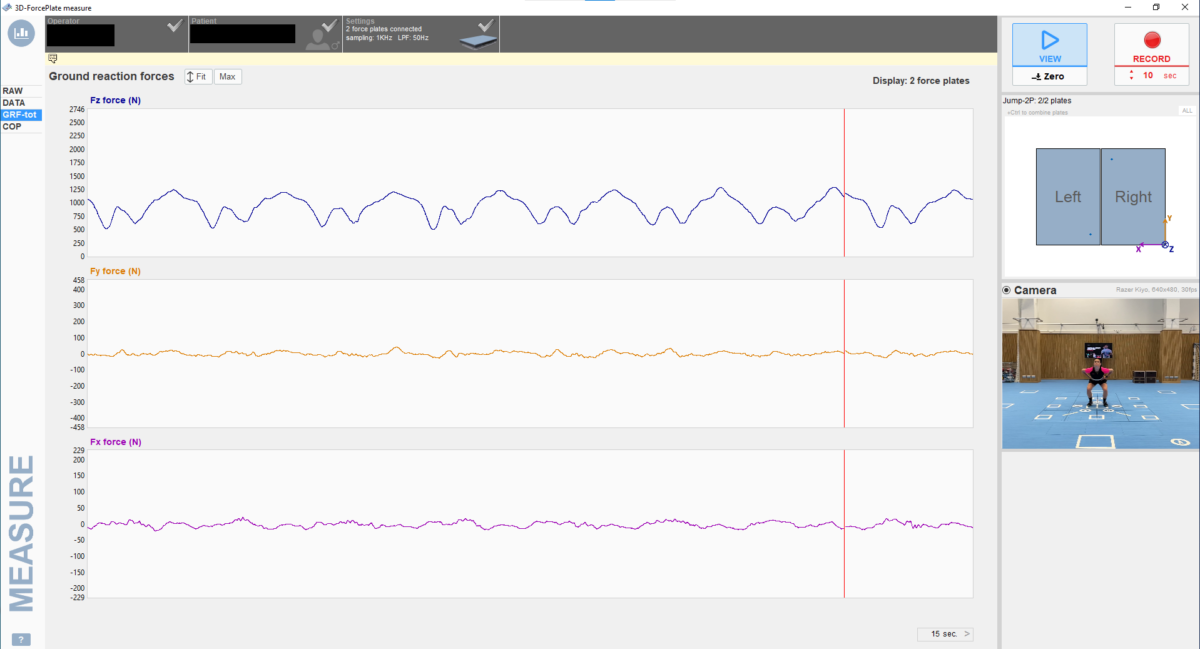

    Software

      Lab integration

      Lab integration features an aluminum base plate for precise levelling, ensuring accurate measurements and seamless integration into suspended floors. The flooring plate is meant to bring any custom flooring material on top of the force plate (vinyl, gym, sports flooring). Dummies replacement plates are also available to easily customize your lab setup.

      Ethernet interface offers versatility and straightforward integration for up to 20 force plates. Arsalis force plate can be easily integrated with existing data acquisition systems such as 3D motion tracking, electromyography, and metabolic energy expenditure measurement systems.

      References

      1. Dierick F, Bouché AF, Scohier M, Guille C, Buisseret F.
        Unstable footwear as a speed-dependent noise-based training gear to exercise inverted pendulum motion during walking.
        J Sports Sci. 2018 Dec;36(24):2818-2826. doi: 10.1080/02640414.2018.1474726. Epub 2018 May 15. PMID: 29764290.
      2. Gambelli CN, Theisen D, Willems PA, Schepens B.
        Human motor control of landing from a drop in simulated microgravity.
         J Appl Physiol (1985). 2016 Sep 1;121(3):760-770. doi: 10.1152/japplphysiol.00305.2016. Epub 2016 Aug 11. PMID: 27516535.
      3. Gambelli CN, Theisen D, Willems PA, Schepens B.
        Motor control of landing from a countermovement jump in simulated microgravity.
        J Appl Physiol (1985). 2016 May 15;120(10):1230-40. doi: 10.1152/japplphysiol.00993.2015. Epub 2016 Feb 4. PMID: 26846555.
      4. Gambelli CN, Schepens B.
        Motor control of landing in an unsteady environment.
        Gait Posture. 2022 Jun;95:235-241. doi: 10.1016/j.gaitpost.2020.06.017. Epub 2020 Jun 22. PMID: 33246775.
      5. Gambelli CN, Theisen D, Willems PA, Schepens B.
        Motor Control of Landing from a Jump in Simulated Hypergravity.
        PLoS One. 2015 Oct 27;10(10):e0141574. doi: 10.1371/journal.pone.0141574. PMID: 26505472; PMCID: PMC4624769.
      6. Malisoux L, Gette P, Urhausen A, Bomfim J, Theisen D.
        Influence of sports flooring and shoes on impact forces and performance during jump tasks.
        PLoS One. 2017 Oct 11;12(10):e0186297. doi: 10.1371/journal.pone.0186297. PMID: 29020108; PMCID: PMC5636165.
      7. Malisoux L, Gette P, Urhausen A, Bomfim J, Theisen D.
        Influence of sports flooring and shoes on impact forces and performance during jump tasks.
        PLoS One. 2017 Oct 11;12(10):e0186297. doi: 10.1371/journal.pone.0186297. PMID: 29020108; PMCID: PMC5636165.
      8. Meyer CAG, Gette P, Mouton C, Seil R, Theisen D.
        Side-to-side asymmetries in landing mechanics from a drop vertical jump test are not related to asymmetries in knee joint laxity following anterior cruciate ligament reconstruction.
        Knee Surg Sports Traumatol Arthrosc. 2018 Feb;26(2):381-390. doi: 10.1007/s00167-017-4651-2. Epub 2017 Jul 15. PMID: 28712025; PMCID: PMC5794826.
      9. Pozo J, Bastien G, Dierick F.
        Execution time, kinetics, and kinematics of the mae-geri kick: comparison of national and international standard karate athletes.
        J Sports Sci. 2011 Nov;29(14):1553-61. doi: 10.1080/02640414.2011.605164. Epub 2011 Oct 13. PMID: 21995835.
